CERA Chevron Concealed cistern set with full frame (without knob) – B1110111

Description

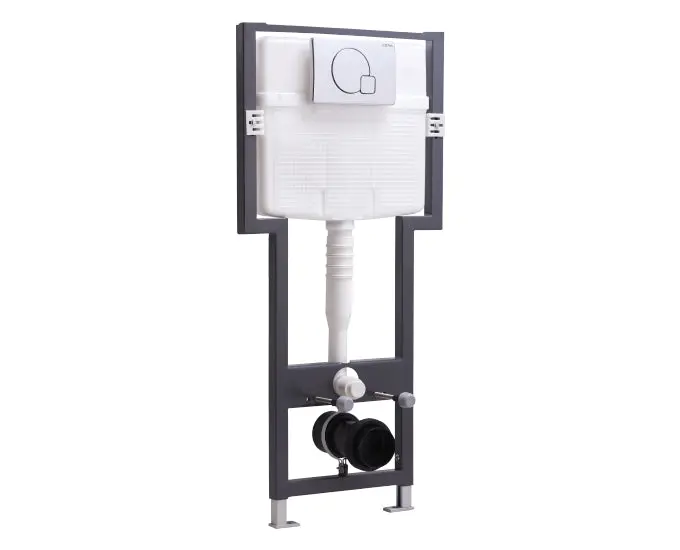

CERA Chevron Concealed Cistern Set with Full Frame (B1110111) is the structural and flushing heart of a wall hung toilet installation — a slim dual-flush cistern mounted in a self-supporting steel frame that carries the entire weight of the pan and its user.

The full frame is what distinguishes this from the half-frame version. It is a free-standing structure fixed to both the floor and the wall behind, so it carries the load itself rather than relying on the wall. That makes it the correct choice for stud partitions, drywall, and any non-load-bearing wall — situations where a half frame simply has nothing solid to transfer weight into. If you’re building a new duct wall or partition to hide the cistern, this is the version you want.

The cistern is a slim profile designed to fit inside a shallow wall recess, with a dual-flush mechanism so users choose a full or reduced flush. Because both the tank and frame disappear behind tile, the finished bathroom shows only the pan and a flush knob. The set ships with both an ‘S’ bend 110 mm and a ‘P’ straight 90 mm discharge pipe, an adapter sleeve, and a protection cap, so it can be connected to either outlet arrangement.
